This Kind of magnetic shuttering system are designed to be inserted into the steel shuttering profiles for holding and fixing shuttering system in prefabricated concrete industry. The precise tolerence (+0/-0.2mm) can make the whole set fit into your model or steel house perfectly.

Due to high precision machining on flat surface, the vertical pulling force can be more than 3500kg as customers' profile size. Normally we used to make black E-poxy material or stainless steel framework for protecting the inside NdFeB magnets.

For different height shutter profile, we can offer different sized magnetic system with required force.

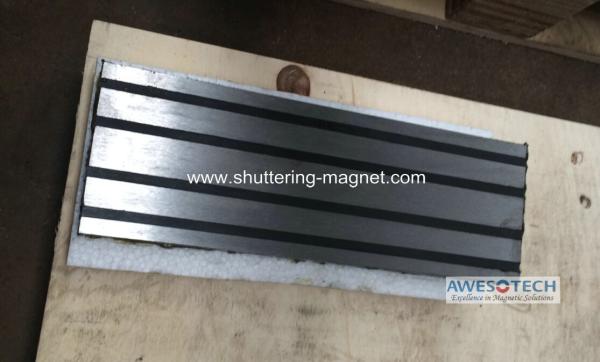

For 120mm height Shutter: L250x84x25mm 2100kgs force

For 200mm height shutter L250x84x48.5mm 3400kgs force

For 240mm height shutter L250x84x25mm 2100kgs force

For 150 mm height shutter L250x83.5x25mm 2100kgs force

For 100 mm height shutter L250x53x25mm 1000kgs force

Other specifications and forces could be customized as per your requirements.

Awesotech Magnetics, established in 2006, is a China based neodymium magnets manufacturer and exporter supplying of all kinds of magnetic solutions and technology, especially for varieties of shuttering magnets in precast concrete construction industry, like SPB Standard PC Magnetic Box, Magfly AP magnet with side handle, Loaf Magnets as Euro RTM type, Magnetic Bar adapting in U-shaped transversal and longitudinal shutterings, all sizes of shuttering magnets for shutter system, no matter steel or wooden platform.

What's more, other kinds of release lever tools for shuttering magnets, magnetic adapters, steel magnetic chamfers, and even whole shuttering formwork profile with magnets could be offered according to customers requirements.

In order to establish a strategic partner with our customers, we tried to participate in their precast concrete production by all-the-way tracking and stand by to offer and design best magnetic solutions for them.

So far, our shuttering magnets and precast concrete accessories already spread out on a map of worldwide, including UAE , Saudi Arabia, India,Philippine, Brazil, Spain, Germany, Australia, New Zealand as well as Poland, Netherlands and other markets.
